The HepcoMotion Bogie Carriage is designed for use with tracks where "S" bends or bends of differing radii are to be negotiated. Each bogie swivels on a special play free axial/radial ball bearing which is lubricated for life. This enables the bogie carriage to follow exactly the path of the track at all times. Carriage plates and bogie swivel plates are made from high strength aluminum alloy and finished anodized. Bogie carriages are supplied assembled and adjusted to suit the accompanying track system*1. Customers are advised to specify the HepcoMotion bleed lubrication facility within the track 52 as lubricators cannot be fitted to bogie carriages. Special size carriage plates are available on request.
Unit of Measure

Specifications

For use with

 N/A TR 76

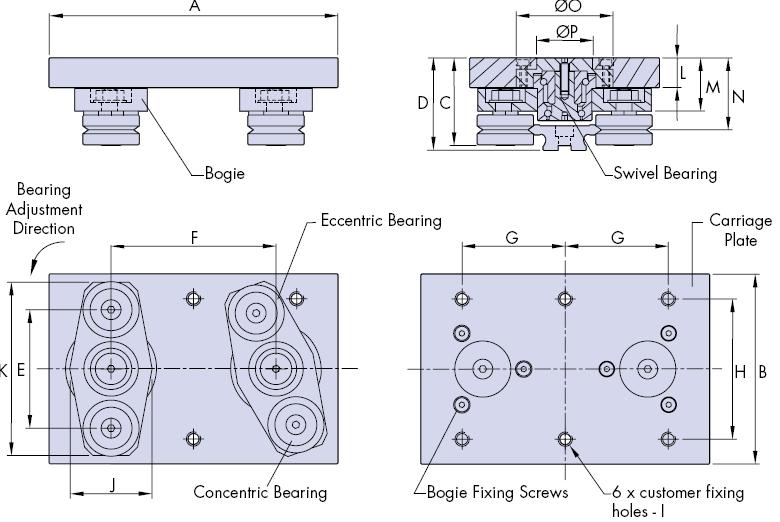

Dimension A

 N/A 240 mm

Dimension B

 N/A 185 mm

Dimension C

 N/A 77.2 mm

Dimension D

 N/A 81 mm

Dimension E

 N/A 118.7 mm

Dimension F

 N/A 130 mm

Dimension G (±0.1)

 N/A 87.5 mm

Dimension H (±0.1)

 N/A 125 mm

Dimension I

 N/A M10

Dimension J

 N/A 72 mm

Dimension K

 N/A 170 mm

Dimension L

 N/A 24 mm

Dimension M

 N/A 42.5 mm

Dimension N

 N/A 61.5 mm

Dimension (Ø O)

 N/A 100 mm

Dimension (ØP)

 N/A 70 mm

Adjustment Brake

 N/A AB-76

Manufacturing Notes

N/A 1. In rare cases where adjustment of the eccentric bearings is required, the bogies must be removed from the carriage plate and bolted instead to the adjustment brace. This will mimic the carriage and provide access to the fixing nuts allowing adjustment of the eccentric bearings to take place.
2. Please note that floating bearings 36 cannot be supplied with bogie bearings
