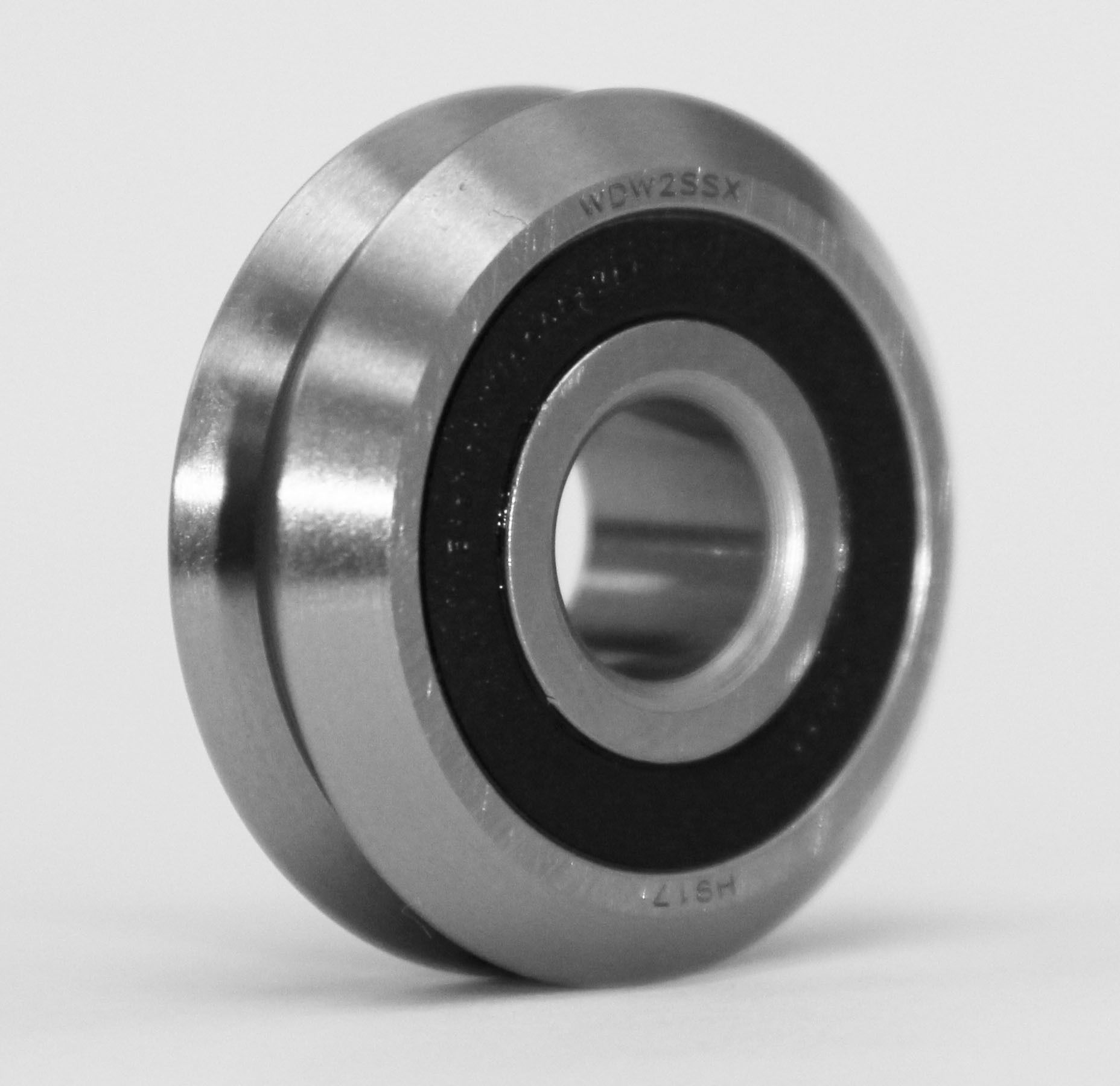

DualVee® WX series guide wheels are linear guide bearings with double row angular contact ball arrangement. Precision ground 90º vee inside or outside surfaces can be employed to support loads and provide smooth and quiet motion. Use with DualVee® guide track for linear motion. Rubber seals protect against small particle contamination. Through bore allows mounting on bushings or journals. Internally lubricated with general purpose grease.
Unit of Measure

Specifications

Brands

 N/A DualVee®

Model

 N/A W1X

Bearing Type

 N/A Ball

Size

 N/A 1

Wheel Carriage Type

 N/A Carbon Steel Sealed

Wheel Material

 N/A 52100 Carbon Steel

Material Standard

 N/A American Iron and Steel Institute (AISI)

Intended Application

 N/A Guides

Features

Features

 N/A
  • General purpose AISI 52100 carbon steel
  • Double row angular contact ball bearing
  • Precision ground 90° vee inside or outside running surfaces
  • Hardened for heavy loads and durability
  • Seals to protect against small particle contamination
