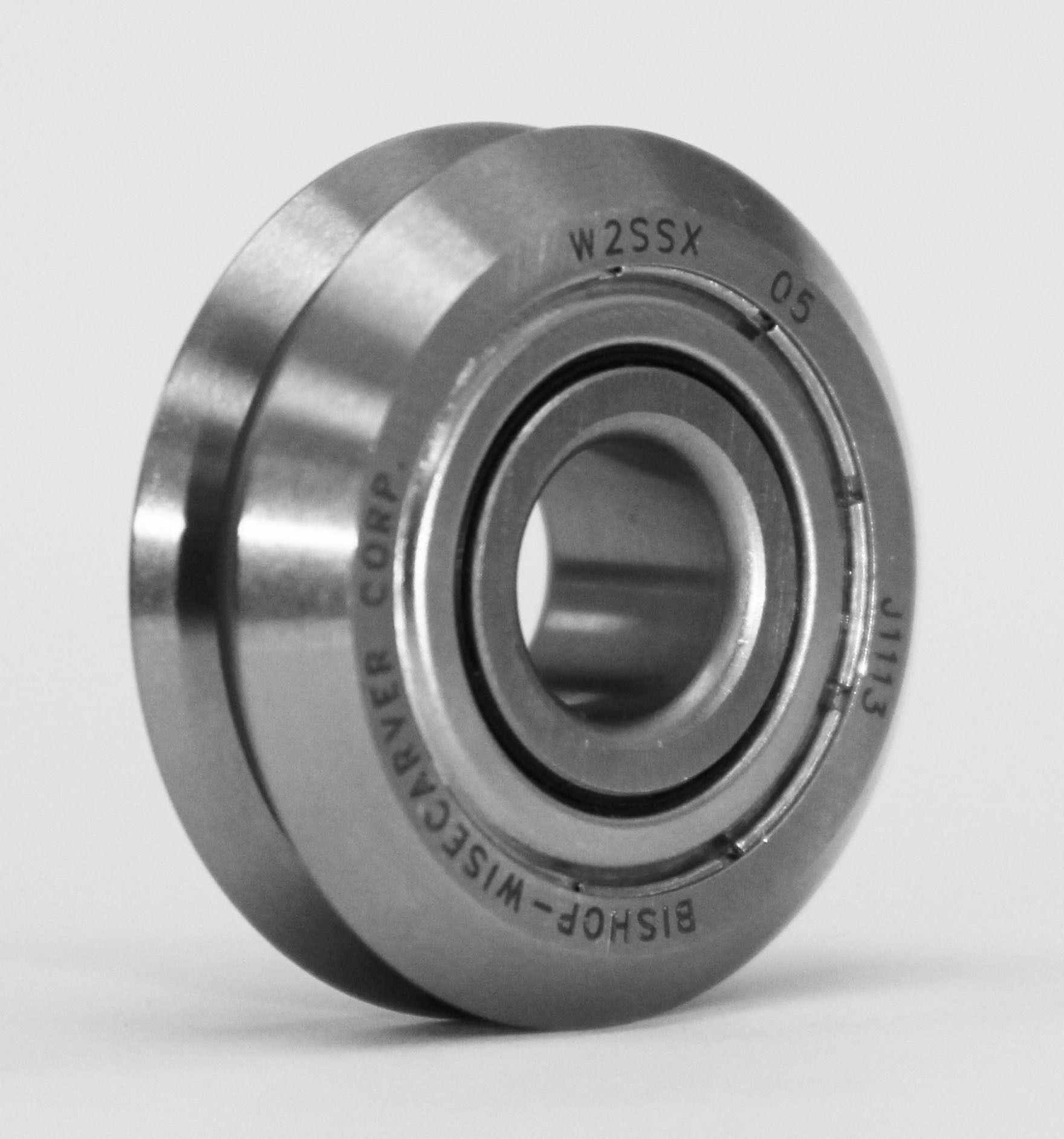

DualVee® WSSX series guide wheels are linear guide bearings with double row angular contact ball bearing arrangement. Precision ground 90º vee inside or outside surfaces can be employed to support loads and provide smooth and quiet motion. Use with DualVee® guide track for linear motion. Rubber seals protect against small particle contamination. Through bore allows mounting on bushings or journals. All stainless steel components and internally lubricated with general purpose grease.
Unit of Measure

Specifications

Brands

 N/A DualVee®

Model

 N/A W1SSX

Bearing Type

 N/A Ball

Size

 N/A 1

Wheel Carriage Type

 N/A Sealed Stainless Steel

Wheel Material

 N/A 440C Stainless Steel

Material Standard

 N/A American Iron and Steel Institute (AISI)

Intended Application

 N/A Guides

Features

Features

 N/A
  • Corrosion resistant AISI 440C stainless steel
  • Double row angular contact ball bearing
  • Precision ground 90° vee inside or outside running surfaces
  • Hardened for heavy loads and durability
  • Seals to protect against small particle contamination
