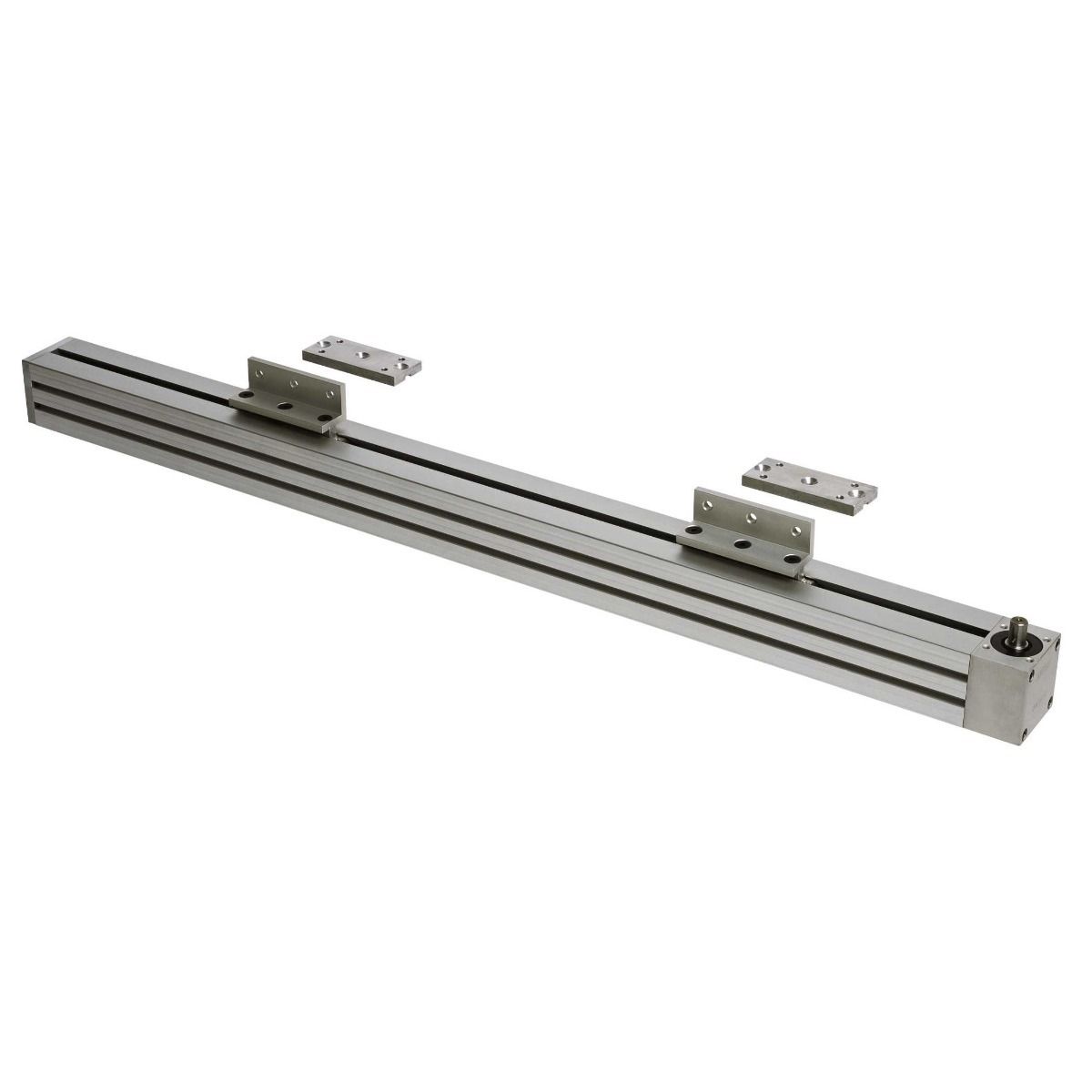

The HepcoMotion DAPDU2 Dual Action Linear Actuator from Bishop-Wisecarver is designed to provide a low maintenance solution suitable for systems that require opening and closing movements, including architectural applications such as windows and doors.

This linear actuator boasts low friction operation with high speed and load capacities, surpassing that of comparable actuators. Loads are designed to be hung from the actuator, making it particularly suitable for door opening and closing applications where space is at a premium.
Unit of Measure

Specifications

Model

 N/A DAPDU2

Speed

 N/A 6 m/s

Total Driving Force

 N/A 280 N

Maximum carriage Capacity

 N/A 500 N

Beam Length

 N/A Up to 6 m

Additional Information

Additional Information

 N/A
  • Carriages run symmetrically, achieving speeds to 6 m/s
  • Beam available in lengths up to 6m
  • Multi-carriage arrangements possible for wider door applications
  • Simple drive belt adjustment
  • Flat or angled carriage plate for easy mounting
  • High strength beam with T slots to suit aluminum profiles
  • Internal buffers for end of stroke protection
  • Compatibility with accessories from PDU2 line (gearing, couplings, motor/gearbox mounting kits, T-nuts and brackets, etc.)
