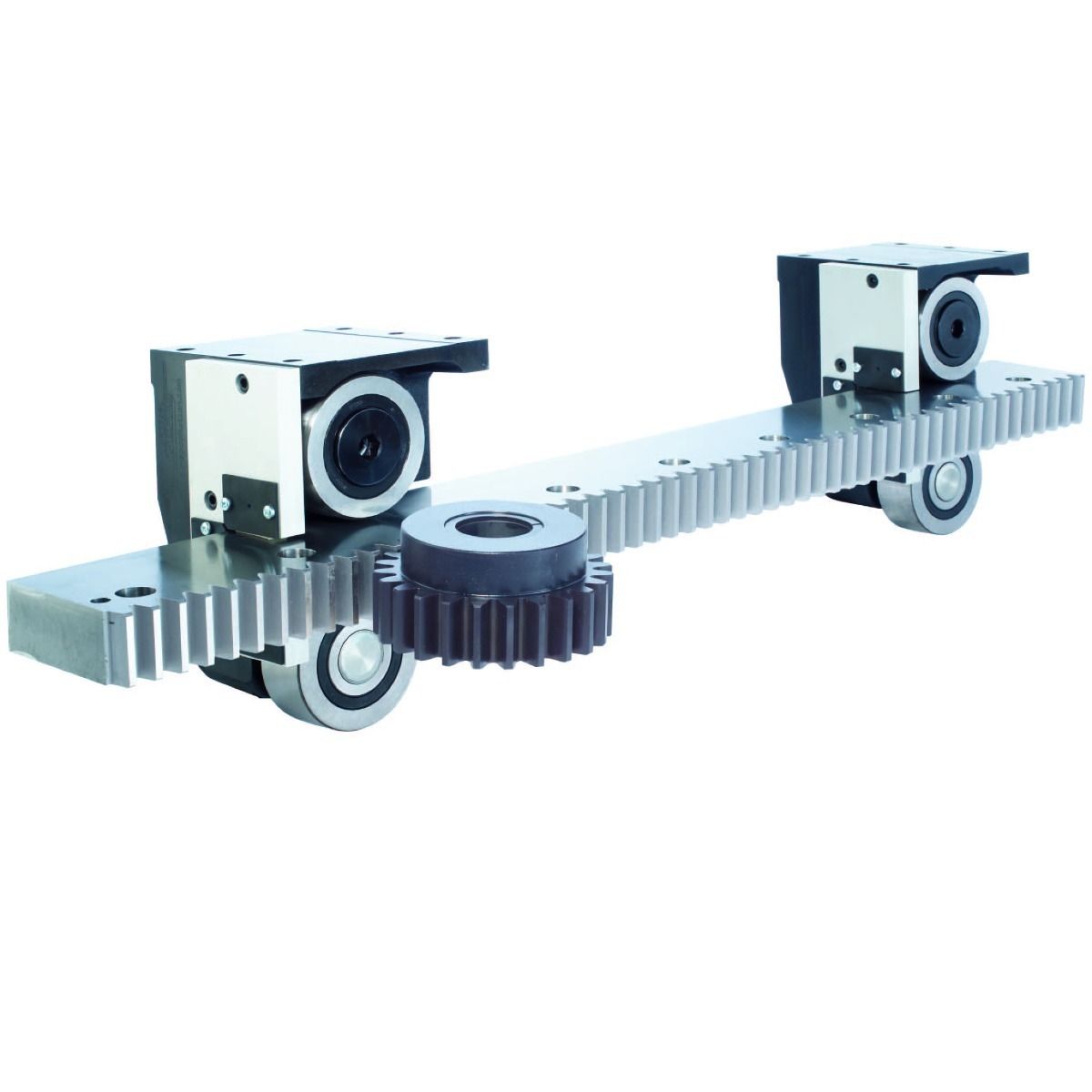

MHD Linear Slide System is ideal for many heavy mechanical handling industries, including robotic transfer systems in the welding industry and assembly processes in the automotive industry. The MHD comes as a kit with tracks and a set of four bearing blocks, comprised of left and right block assemblies.
  • Suitable for extremely high loads and offset loads
  • Designed for durability and long life
  • Spur or helical gear drives allow for high driving forces
  • Speed capability over 6 m/s
  • Unlimited travel lengths can be achieved
  • Carriage plates can be made to incorporate gearboxes, motors & other drive elements
  • Maintenance free in most applications
Unit of Measure

Specifications

Model

 N/A MHD

Flat Track Length

 N/A 1.4 m

Pinions Material

 N/A Hardened Steel

Bearing Blocks

Bearing Blocks

 N/A Bearing blocks, each with three large integral crown rollers, are sealed for the life of the product for reduced friction and maintenance. This increases life and enables continuous operation. The top v groove bearing, which supports the heaviest load, is a tapered roller bearing for high capacity and rigidity. To remove play, rollers on the side and lower region are adjustable. The double-row tapered bearings are aligned in the direction of motion, allowing it to resist end loading and premature failure caused by axial loading.

Flat Tracks

Flat Tracks

 N/A The MHD includes a pair of 100 by 40mm high precision flat tracks that are hardened and fully ground on all surfaces. Tracks of single lengths up to 1.4m can be joined for longer length applications.

Pinions

Pinions

 N/A Available in two sizes to suit MHD flat tracks with both straight cut and helical racks, pinions have a metric module tooth form with a 20 degree pressure angle. Pinions are made from high quality case hardened steel, and the teeth are precision ground to ISO 1328 grade 6.
The pinions are supplied with keyless locking bushings in order to be securely fitted to a standard h8 tolerance shaft.
