HepcoMotion Ring Slides straight slides are modified straight slides from the highly acclaimed HepcoMotion GV3 system forwhich there is a separate catalog, contact Bishop-Wisecarver or visit www.bwc.com. The slides are manufactured fromquality high carbon steel, zone hardened on the V faces for maximum wear resistance and precision ground for high accuracyand conformity. The center portion of the slide is left soft to allow for customizing. Standard lengths are available up to 4020 mm(1976 mm in the TNMS 12 section) and unlimited lengths can be achieved by butting slides together. Slides are available instainless steel for applications requiring corrosion resistance. Sets of short slides in incremental lengths can be supplied forcustomers wishing to extend a system in order to take up chain or belt stretch, see application example 19. A bleed lubricationfacility is available to channel lubricant direct to the running surfaces
Unit of Measure

Specifications

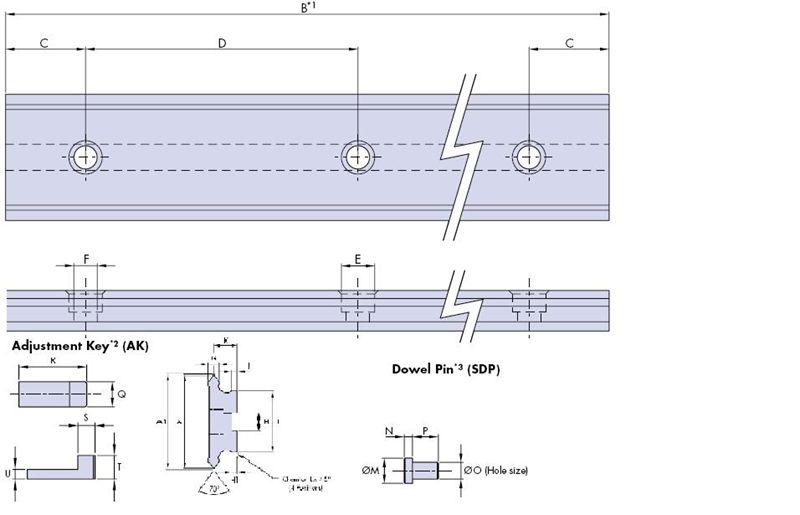

Dimension A

 N/A 44 mm

Dimension A1

 N/A 44.74 mm

Dimension B (max)

 N/A 4020 mm

Dimension C (-0.2)

 N/A 30 mm

Dimension D

 N/A 90 mm

Dimension E Ø

 N/A 11 mm

Dimension E (Depth)

 N/A 6 mm

Dimension F

 N/A 7 mm

Dimension G

 N/A 6.21 mm

Dimension H (+0.05 | -0.00)

 N/A 8 mm

Dimension H1

 N/A 3 mm

Dimension I (± 0.025)

 N/A 26 mm

Dimension J

 N/A 2.3 mm

Dimension K

 N/A 12.5 mm

Dimension L

 N/A 0.3 mm

Dimension MØ (m6)

 N/A 8 mm

Dimension MØ Tolerance (m6)

 N/A +0.006 mm+0.015 mm

Dimension N

 N/A 2.75 mm

Dimension OØ (K6)

 N/A 6 mm

Dimension OØ Tolerance (K6)

 N/A +0.002 mm-0.006 mm

Dimension P

 N/A 8 mm

Dimension Q

 N/A 8 mm

Dimension R

 N/A 33 mm

Dimension S

 N/A 8 in

Dimension T

 N/A 7 mm

Dimension U

 N/A 2.7 mm

Density

 N/A 3.5 kg/m

DIN912 (Not supplied)

 N/A M6

Manufacturing Notes

N/A For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a maximum length per 'B' dimension in table above. Special length slides can be cut to order.

For Adjustment Key: Adjustment keys are required at every join between straight slide and curved slide. Please order accordingly (see ordering details). Please note that 'Q' dimension for the TNMS 12 & TNV 20 slides is stepped one end to fit keyway 'H'.

For Dowel Pin: Please note that dowel pins for the TNMS 12 slide are not stepped.

For Mounting Surface: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.

For Dimension A1 & k : For track system requirements dimensions 'A1' and 'K' will be matched with corresponding dimensions 'F' and 'I'.
