HepcoMotion Ring Slides single edge straight slides retain key features of the double edge slides, with precision ground finish and zone hardened V faces. Standard lengths are available up to 4020 mm and unlimited lengths can be achieved by butting slides together. Slides are matched in essential respects both with each other and with their corresponding curved segments. They are ground square on the ends for precision butting and are marked with a reference number and sequence number for identification during installation and for replacement purposes. Slide pairs and opposing slides within a track system are ground to identical lengths
Track system single edge slides, can be used to construct a single edge duplex track system which provides a wide platform for supporting large components with extreme rigidity. The large rear face of the single edge slide enables a full width rack to be machined in the rear face providing for a strong drive. This can be used for the construction of a gear driven duplex track system
Unit of Measure

Specifications

For use with Curved Segments

 N/A TRIS278, TRES376

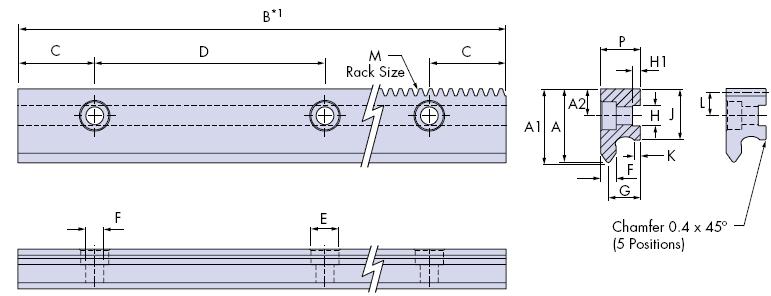

Dimension A

 N/A 21 mm

Dimension A1

 N/A 21.37 mm

Dimension E Ø

 N/A 10 mm

Dimension E (Depth)

 N/A 5.1 mm

Dimension F

 N/A 4.7 mm

Dimension G

 N/A 10 mm

Dimension H (+0.05 | -0.00)

 N/A 6 mm

Dimension H1

 N/A 2.5 mm

Dimension K

 N/A 2.6 mm

Dimension L

 N/A 7.4 mm

Dimension P

 N/A 12.35 mm

Dimension A2

 N/A 8.5 mm

Dimension C

 N/A 30 mm

Dimension D (± 0.2)

 N/A 90 mm

Dimension J (± 0.025)

 N/A 16 mm

Dimension M (Module)

 N/A 1 mm

Manufacturing Notes

N/A For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a 4020 mm maximum length. Special length slides can be cut to order.
For 2: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.
For Dimension A1 and G: For track system requirements dimensions 'A1' and 'G' will be matched with corresponding dimensions 'F' and 'I', 46.
For Dimension M: Single edge slides with a rack, will be supplied in lengths that correspond to multiplies of rack pitch. The position of the ends of the slides is accurately controlled to coincide with the center of the rack root to give perfect running joints for slides and ring segments.
