HepcoMotion lubricators are made from impact resistant plastic and house a sprung oil impregnated felt wiper designed to apply a constant film of oil to the working surfaces of the ring slide without imposing undue friction. The application of oil significantly increases the load and life of the system. Either type of lubricator can be used with individual ring slides, segments and ring discs. The compact type can be used with Hepco fixed center carriage plates. Customers may also consider using the HepcoMotion bleed lubrication facility suitable for track systems
Unit of Measure

Specifications

For use with Ring Slides

 N/A R76

For use with Curved Segments

 N/A REL, RIL

For use with Track System

 N/A TNL 76

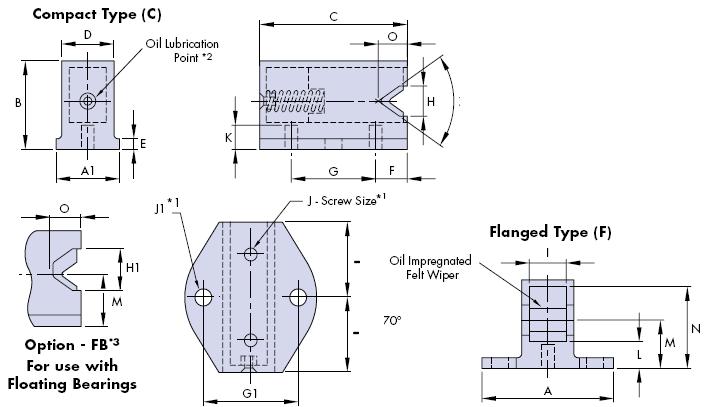

Dimension A (Type F)

 N/A 50 mm

Dimension A1 (Type C)

 N/A 25 mm

Dimension B

 N/A 33.5 mm

Dimension C

 N/A 57 mm

Dimension D

 N/A 22.7 mm

Dimension E

 N/A 4.5 mm

Dimension F

 N/A 12 mm

Dimension G (± 0.1)

 N/A 33 mm

Dimension G1 (± 0.1)

 N/A 38 mm

Dimension H

 N/A 10 mm

Dimension H1

 N/A 12.6 mm

Dimension I

 N/A 18 mm

Dimension J (Ø)

 N/A 3.5 mm

Dimension J (Length)

 N/A 22 mm

Dimension J1 (Screw Size)

 N/A M5 x 12

Dimension J1 (Hole Ø)

N/A 5.2 mm

Dimension K

 N/A 9 mm

Dimension L

 N/A 10 mm

Dimension M

 N/A 19 mm

Dimension N

 N/A 31.5 mm

Dimension O

 N/A 11.5 mm

Weight

 N/A 44 g

Manufacturing Notes

N/A For 1: 2 machine screws with cross-recessed pan heads to DIN7985A are supplied for fixing the flanged type lubricator (see J1 in table). Additionally, 2 self tapping screws for plastic with PT thread form and cross-recessed pan heads are supplied for the compact type lubricator (see J in table).
For 2: Lubrication interval depends on length of stroke, duty and environmental factors. Replenish lubricant as necessary using a 68 viscosity EP mineral oil.
For 3: Size 25,44 & 76 lubricators are available with increased clearance "H1" to accommodate the "V float" of the floating bearings
