Wheel Carriage Type |
N/A Shielded Steel |
Operating Temperature Range |
N/A -20 to 120 ºC-4 to 248 ºF |
Wheel Specifications |
N/A AISI 52100 carbon steel, double row angular contact bearing |
Axial Working Load (LA) |
N/A 540 N121.4 lbf |
Radial Working Load (LR) |
N/A 490 N110.2 lbf |
Pitch Moment (MP) |
N/A 7.9 nm69.9 lb·in |
Yaw Moment (MY) |
N/A 8.6 nm76.1 lb·in |
Roll Moment (MR) |
N/A 6.2 nm54.9 lb·in |
Maximum Speed |
N/A 5 m/s16.4 ft/s |
Maximum Acceleration |
N/A 49 m/s²5 g |
Weight in Grams |
N/A 84.3 g |
Features |
N/A

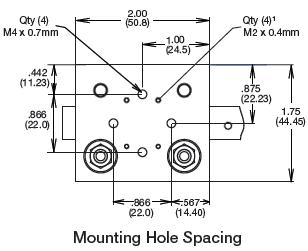

Size 0 MinVee Wheel Plates |
