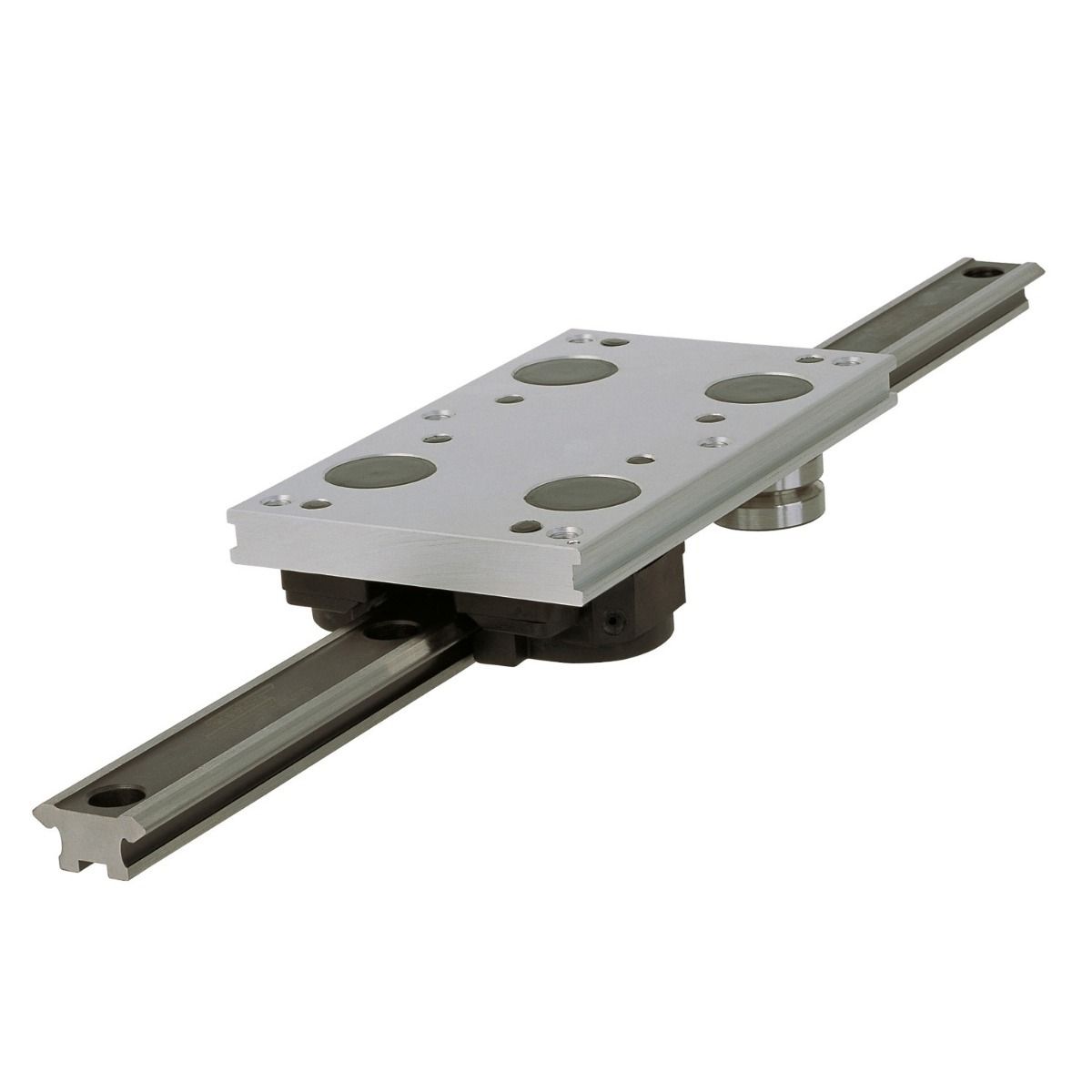

Item # 1643, HepcoMotion GV3 Linear Guidance and Transmission Guides On Bishop-Wisecarver Corp.

Unit of Measure

Specifications | Carriage Assemblies | V Slides | Driven GV3 Systems | Additional Information

Specifications

Model

N/A GV3

Carriage Assemblies

N/A Carriage assemblies are available in a variety of sizes. They can be fitted with a combination of concentric bearings for rigidity and eccentric bearings for adjustable fit and feel. Carriage assemblies can be factory adjusted to a chosen slide, if needed. Bearings are internally lubricated for life.

Double Row Bearings: Debris tolerance and high load capacity.
Twin Bearings: Misalignment tolerance and smooth running.
Slimline Bearings: Single row for a compact profile.
Controlled Height Bearings: Color-coded tolerances for high-precision applications.
Floating Bearings: High-speed needle bearings with parallelism compensation when V slides are mounted in parallel.
Vacuum and Extreme Temperature Bearings: Shielded stainless steel bearings and rollers with high temperature or low temperature grease.
Twin Taper Bearings: High strength and rigidity tapered roller bearing.
Wide and Narrow Track Rollers: Crowned running faces for misalignment tolerance.

GV3 carriage options provide valuable features for any linear guidance or actuator system. For example: Removable carriages can be disengaged from a slide without running the carriage off the end. Carriages with side-access adjustment provide added accessibility, precision control, and stability of eccentric wheel adjustment. Moment load carriages use additional rollers and a track support beam to support high offset loads. Lubricators keep contact surfaces oiled for increased life with low friction felt wipers. Cap seals/wipers provide lubrication while enclosing the bearings for greater safety and debris resistance. The internal cavity provides enough lubrication for the machine’s lifetime, depending on operational and environmental factors. Locking devices mount onto the ends of carriages to hold them in place at the turn of a handle.

V Slides

N/A GV3 slides are available with single or double edge, flat or with integrated spacer, in a wide variety of profile sizes. Unlimited length can be achieved by butt-joining. Slides are available in three different precision grades to fit performance and economic needs.

P3: Precision drawn.
P2: Precision drawn with ground running and alignment surfaces.
P1: Precision drawn with ground running, alignment, and mounting surfaces.

GV3 slide options provide valuable features for any linear guidance or actuator system. For example: Bleed lubrication can be used to pump lubricant directly to ports on the running surfaces. Flange clamps enable slides to become self-supporting beams, with a clamp at one or both ends. A variety of end stops and shock absorbers protect from impacts in case of a system overrun and enhance system safety.

Driven GV3 Systems

N/A Belt-driven carriages include adjustable belt tensioning. Belts are steel-reinforced polyurethane, and pulleys come ready for mounting onto shafts. For standalone belt-driven actuators, see the LoPro, DLS, PDU2, and SBD linear actuator lines.

Rack-driven carriages include a variety of motor orientations and have low backlash. Racks come as individual components or integrated with the slide.

Additional Information

N/A HepcoMotion GV3 provides a wide array of precision linear guide components using 70° guide wheel and roller wheel technology. GV3 may be used as a simple guide or as a self-actuated rack- or belt-driven system. It is available as individual components or as a fully assembled and adjusted system. HepcoMotion MCS Aluminum machine frame provides an ideal base for GV3 systems.
