HepcoMotion ring segments are cut from complete 360° ring slides and held in stock in nominal 90° and 180° segments. Any length segment can be cut to customer's special order and additional holes drilled as required. Although suitable for most applications, slight out of roundness and flatness may be experienced with slide rings and segments in their free unmounted condition. This may be overcome by installing against a register and bolting to a flat surface. True shape rings and segments are available on request. Larger diameter single edge ring slides are available in the HDRT range for which there is a separate catalog
Unit of Measure

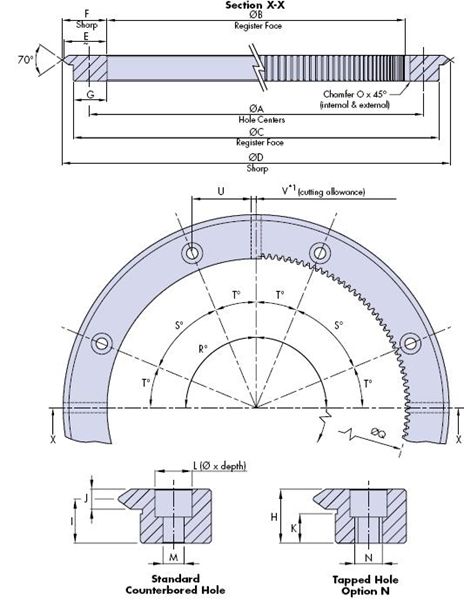

Specifications

For use with bearing Ø

 N/A J34

Dimension A (± 0.2)

 N/A 618.5 mm

Dimension B (JS6) Ø

 N/A 597.5 mm

Dimension B Tolerance (±)

 N/A 0.022 mm

Dimension C Ø

 N/A 637.5 mm

Dimension C Tolerance (±)

 N/A 0.048 mm

Dimension D

 N/A 656.24 mm

Dimension E

 N/A 28.8 mm

Dimension F

 N/A 29.37 mm

Dimension G

 N/A 20 mm

Dimension H

 N/A 15.5 mm

Dimension I (± 0.025)

 N/A 12.5 mm

Dimension J

 N/A 6 mm

Dimension K

 N/A 7 mm

Dimension L

 N/A 11 x 6.2 mm

Dimension M

 N/A 6.8 mm

DIN912 (Not supplied)

 N/A M6

Dimension N

 N/A M8

Dimension O

 N/A 0.5 mm

Internal Gear Dimension Q

 N/A 600 mm

Internal Gear MOD

 N/A 1.25 mm

Stock Segments Dimension R

 N/A 90°-180°-360°

Number of holes (R=360°)

 N/A 16

Dimension U

 N/A 58.3 mm

Dimension V

 N/A 2 mm

Weight (R=360°)

 N/A 5.18 Kilogram

Dimension M (Min)

 N/A 618.5 mm

Holes within ±0.2 of true position

Dimension S

 N/A 22.5 º

Dimension T

 N/A 11.25 º

Manufacturing Notes

N/A For Stock Segments : Standard ring segments will be slightly less than 90° and 180° because of the cutting allowance. Full 90° and 180° segments can be supplied to customer's special order.
