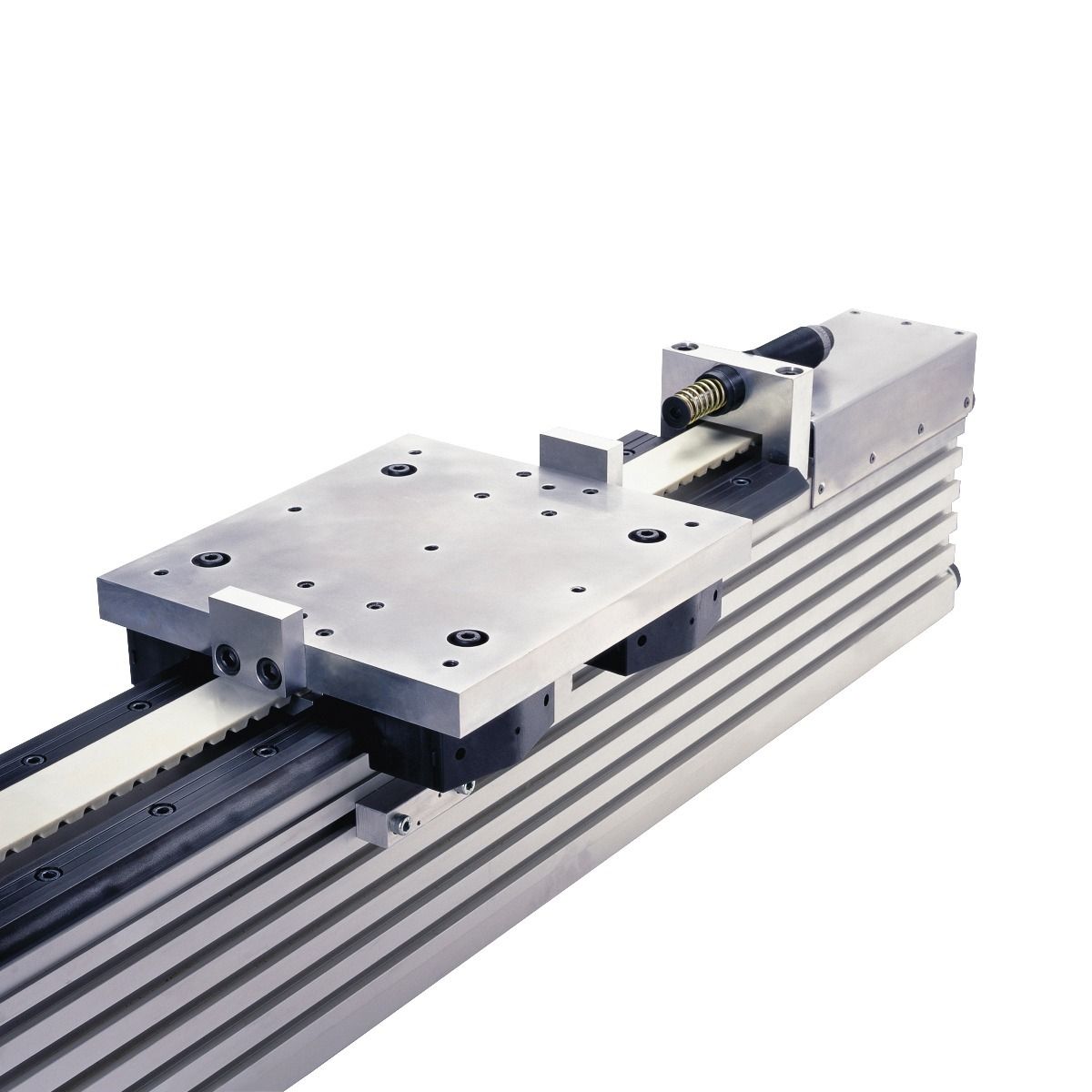

HDLS actuators use heavy duty vee guides and are driven by a steel-reinforced AT series timing belt.

Units can be supplied with an AC geared motor for a simple and cost effective means of driving. Alternatively, they can be supplied with integral gearbox to suit your own motor, or with shaft drive.

Narrow and wide unit versions are available. The narrow unit is taller than the wide unit making it stiffer. The wide unit is better suited for applications with high moment loads. Both the narrow unit and the wide unit feature left, right, and dual output shafts. Gear boxes may be supplied directly coupled to units. Extended output shafts on gear boxes are also possible to drive two systems in parallel.

• Units can be connected together to make X-Y and X-Y-Z systems.
• Lengths up to 6m in one piece, unlimited with butt-joined tracks.
• Bearing-based V slide system allows speeds in excess of 6m/s.
• T-slots, T-nuts, and fixing brackets for easy mounting.
• Lubrication devices maximize life, with no re-lubrication required in many cases.
