  • HepcoMotion PSD Precision Screw Drive Actuator

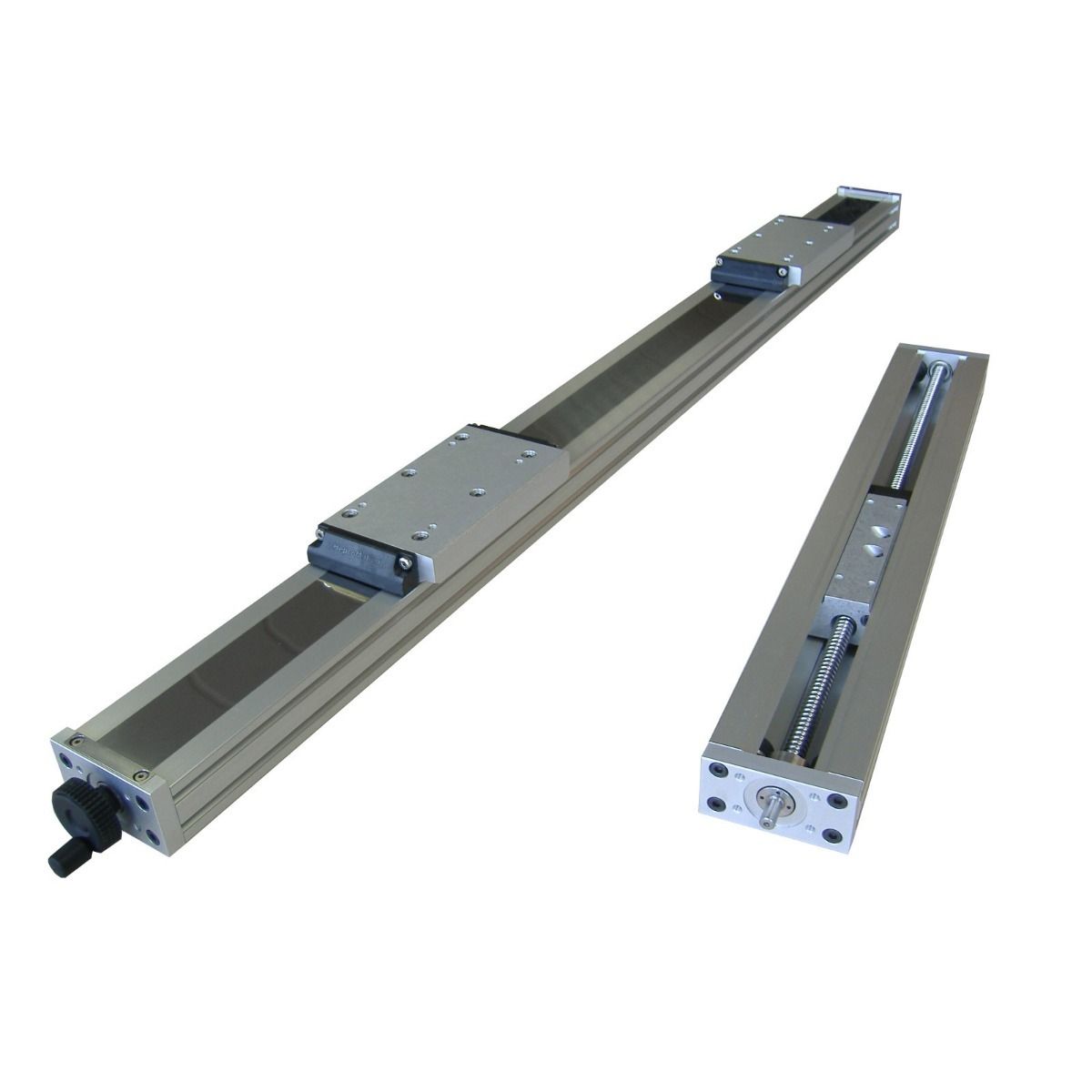

The HepcoMotion PSD lightweight screw driven actuator is a space saving ready to mount system available in 80mm (PDS80) or 120mm (PDS120) units. These cost-effective actuators are available in lengths up to 2850mm (6000mm for slave units). The PSD80 Linear Actuator is available as standard with a stainless steel lead screw in a range of screw pitches and complements the precision ball screw offering within PSD120 and PSD80.
  • Can be used as a single or multi axis unit.
  • Herculane® Wheels ensure zero play linear motion.
  • Available with ball screw and lead screw drive with stainless steel option and wide range of screw pitches.
  • Stainless steel cover effectively seals the unit from debris.
  • Works well in Z-axis applications.
  • Double acting PSD80 available.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Axial and Radial Load Capacity

Speed

Beam Length

Travel Length

N/A HepcoMotion 1 m/s Metre per Second Maximum Speed PSD Precision Screw Drive Actuator N/A 500 N N/A Up to 1 m/s N/A Up to 2850 mm N/A Up to 2635 mm
N/A HepcoMotion 1.6 m/s Metre per Second Maximum Speed PSD Precision Screw Drive Actuator N/A 700 N N/A Up to 1.6 m/s N/A Up to 1500 mm N/A Up to 1253 mm
