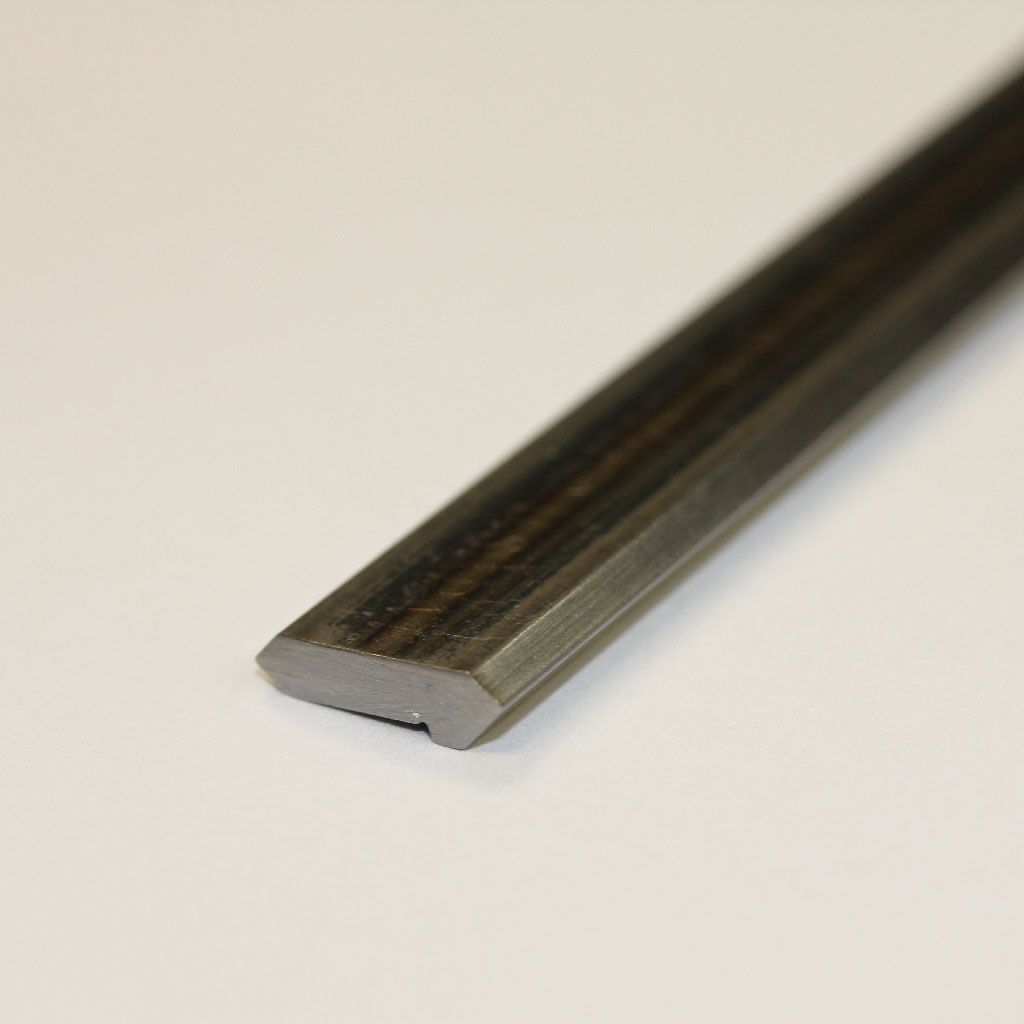

MinVee® Double Edge Guide Tracks On Bishop-Wisecarver Corp.

MinVee® tracks feature dual 90 degree vee edges, as well as a self-aligning mounting shoulder to reduce installation time and cost. MinVee® linear slides are available with 1045 carbon steel track, hardened (Rc 53 Min), or unhardened (Rc 22-25), drilled or undrilled. Choose from a variety of standard lengths or request a custom length. Single length pieces up to 20 feet hardened or 22 feet unhardened are available, and can be easily connected to create a longer length linear slide. Custom plating options include black oxide, electroless and nickel. Stainless steel stand-offs and an aluminum spacer for mounting track are also available.

Item #	Item Name	Model	Size	Length	Number of Wheels
5222	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 6.50 Inch (in) Length, and 4 Holes Double Edge Guide Track	N/A TD0-6504	N/A 0	N/A 6.50 in	N/A 4
5223	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 12.50 Inch (in) Length, and 7 Holes Double Edge Guide Track	N/A TD0-12507	N/A 0	N/A 12.50 in	N/A 7
5224	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 18.50 Inch (in) Length, and 10 Holes Double Edge Guide Track	N/A TD0-185010	N/A 0	N/A 18.50 in	N/A 10
5225	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 24.50 Inch (in) Length, and 13 Holes Double Edge Guide Track	N/A TD0-245013	N/A 0	N/A 24.50 in	N/A 13
5226	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 30.50 Inch (in) Length, and 16 Holes Double Edge Guide Track	N/A TD0-305016	N/A 0	N/A 30.50 in	N/A 16
5227	N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 36.50 Inch (in) Length, and 19 Holes Double Edge Guide Track	N/A TD0-365019	N/A 0	N/A 36.50 in	N/A 19
5228	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 6.50 Inch (in) Length, and 4 Holes Double Edge Guide Track	N/A TDS0-6504	N/A 0	N/A 6.50 in	N/A 4
5229	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 12.50 Inch (in) Length, and 7 Holes Double Edge Guide Track	N/A TDS0-12507	N/A 0	N/A 12.50 in	N/A 7
5230	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 18.50 Inch (in) Length, and 10 Holes Double Edge Guide Track	N/A TDS0-185010	N/A 0	N/A 18.50 in	N/A 10
5231	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 24.50 Inch (in) Length, and 13 Holes Double Edge Guide Track	N/A TDS0-245013	N/A 0	N/A 24.50 in	N/A 13
5232	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 30.50 Inch (in) Length, and 16 Holes Double Edge Guide Track	N/A TDS0-305016	N/A 0	N/A 30.50 in	N/A 16
5233	N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 36.50 Inch (in) Length, and 19 Holes Double Edge Guide Track	N/A TDS0-365019	N/A 0	N/A 36.50 in	N/A 19
5234	N/A MinVee® Size 0, Hardened Carbon Steel, and 1 Feet (ft) Length Double Edge Guide Track	N/A TD0-1	N/A 0	N/A 1 ft	N/A
5235	N/A MinVee® Size 0, Hardened Carbon Steel, and 2 Feet (ft) Length Double Edge Guide Track	N/A TD0-2	N/A 0	N/A 2 ft	N/A
5236	N/A MinVee® Size 0, Hardened Carbon Steel, and 3 Feet (ft) Length Double Edge Guide Track	N/A TD0-3	N/A 0	N/A 3 ft	N/A
5237	N/A MinVee® Size 0, Hardened Carbon Steel, and 4 Feet (ft) Length Double Edge Guide Track	N/A TD0-4	N/A 0	N/A 4 ft	N/A
5238	N/A MinVee® Size 0, Hardened Carbon Steel, and 5 Feet (ft) Length Double Edge Guide Track	N/A TD0-5	N/A 0	N/A 5 ft	N/A
5239	N/A MinVee® Size 0, Hardened Carbon Steel, and 6 Feet (ft) Length Double Edge Guide Track	N/A TD0-6	N/A 0	N/A 6 ft	N/A
5240	N/A MinVee® Size 0, Hardened Carbon Steel, and 7 Feet (ft) Length Double Edge Guide Track	N/A TD0-7	N/A 0	N/A 7 ft	N/A
5241	N/A MinVee® Size 0, Hardened Carbon Steel, and 8 Feet (ft) Length Double Edge Guide Track	N/A TD0-8	N/A 0	N/A 8 ft	N/A
5242	N/A MinVee® Size 0, Soft Carbon Steel, and 1 Feet (ft) Length Double Edge Guide Track	N/A TDS0-1	N/A 0	N/A 1 ft	N/A
5243	N/A MinVee® Size 0, Soft Carbon Steel, and 2 Feet (ft) Length Double Edge Guide Track	N/A TDS0-2	N/A 0	N/A 2 ft	N/A
5244	N/A MinVee® Size 0, Soft Carbon Steel, and 3 Feet (ft) Length Double Edge Guide Track	N/A TDS0-3	N/A 0	N/A 3 ft	N/A
5245	N/A MinVee® Size 0, Soft Carbon Steel, and 4 Feet (ft) Length Double Edge Guide Track	N/A TDS0-4	N/A 0	N/A 4 ft	N/A
5246	N/A MinVee® Size 0, Soft Carbon Steel, and 5 Feet (ft) Length Double Edge Guide Track	N/A TDS0-5	N/A 0	N/A 5 ft	N/A

5222

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 6.50 Inch (in) Length, and 4 Holes Double Edge Guide Track

N/A TD0-6504

N/A 0

N/A 6.50 in

N/A 4

5223

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 12.50 Inch (in) Length, and 7 Holes Double Edge Guide Track

N/A TD0-12507

N/A 0

N/A 12.50 in

N/A 7

5224

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 18.50 Inch (in) Length, and 10 Holes Double Edge Guide Track

N/A TD0-185010

N/A 0

N/A 18.50 in

N/A 10

5225

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 24.50 Inch (in) Length, and 13 Holes Double Edge Guide Track

N/A TD0-245013

N/A 0

N/A 24.50 in

N/A 13

5226

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 30.50 Inch (in) Length, and 16 Holes Double Edge Guide Track

N/A TD0-305016

N/A 0

N/A 30.50 in

N/A 16

5227

N/A MinVee® Drilled, Size 0, Hardened Carbon Steel, 36.50 Inch (in) Length, and 19 Holes Double Edge Guide Track

N/A TD0-365019

N/A 0

N/A 36.50 in

N/A 19

5228

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 6.50 Inch (in) Length, and 4 Holes Double Edge Guide Track

N/A TDS0-6504

N/A 0

N/A 6.50 in

N/A 4

5229

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 12.50 Inch (in) Length, and 7 Holes Double Edge Guide Track

N/A TDS0-12507

N/A 0

N/A 12.50 in

N/A 7

5230

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 18.50 Inch (in) Length, and 10 Holes Double Edge Guide Track

N/A TDS0-185010

N/A 0

N/A 18.50 in

N/A 10

5231

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 24.50 Inch (in) Length, and 13 Holes Double Edge Guide Track

N/A TDS0-245013

N/A 0

N/A 24.50 in

N/A 13

5232

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 30.50 Inch (in) Length, and 16 Holes Double Edge Guide Track

N/A TDS0-305016

N/A 0

N/A 30.50 in

N/A 16

5233

N/A MinVee® Drilled, Size 0, Soft Carbon Steel, 36.50 Inch (in) Length, and 19 Holes Double Edge Guide Track

N/A TDS0-365019

N/A 0

N/A 36.50 in

N/A 19

5234

N/A MinVee® Size 0, Hardened Carbon Steel, and 1 Feet (ft) Length Double Edge Guide Track

N/A TD0-1

N/A 0

N/A 1 ft

N/A

5235

N/A MinVee® Size 0, Hardened Carbon Steel, and 2 Feet (ft) Length Double Edge Guide Track

N/A TD0-2

N/A 0

N/A 2 ft

N/A

5236

N/A MinVee® Size 0, Hardened Carbon Steel, and 3 Feet (ft) Length Double Edge Guide Track

N/A TD0-3

N/A 0

N/A 3 ft

N/A

5237

N/A MinVee® Size 0, Hardened Carbon Steel, and 4 Feet (ft) Length Double Edge Guide Track

N/A TD0-4

N/A 0

N/A 4 ft

N/A

5238

N/A MinVee® Size 0, Hardened Carbon Steel, and 5 Feet (ft) Length Double Edge Guide Track

N/A TD0-5

N/A 0

N/A 5 ft

N/A

5239

N/A MinVee® Size 0, Hardened Carbon Steel, and 6 Feet (ft) Length Double Edge Guide Track

N/A TD0-6

N/A 0

N/A 6 ft

N/A

5240

N/A MinVee® Size 0, Hardened Carbon Steel, and 7 Feet (ft) Length Double Edge Guide Track

N/A TD0-7

N/A 0

N/A 7 ft

N/A

5241

N/A MinVee® Size 0, Hardened Carbon Steel, and 8 Feet (ft) Length Double Edge Guide Track

N/A TD0-8

N/A 0

N/A 8 ft

N/A

5242

N/A MinVee® Size 0, Soft Carbon Steel, and 1 Feet (ft) Length Double Edge Guide Track

N/A TDS0-1

N/A 0

N/A 1 ft

N/A

5243

N/A MinVee® Size 0, Soft Carbon Steel, and 2 Feet (ft) Length Double Edge Guide Track

N/A TDS0-2

N/A 0

N/A 2 ft

N/A

5244

N/A MinVee® Size 0, Soft Carbon Steel, and 3 Feet (ft) Length Double Edge Guide Track

N/A TDS0-3

N/A 0

N/A 3 ft

N/A

5245

N/A MinVee® Size 0, Soft Carbon Steel, and 4 Feet (ft) Length Double Edge Guide Track

N/A TDS0-4

N/A 0

N/A 4 ft

N/A

5246

N/A MinVee® Size 0, Soft Carbon Steel, and 5 Feet (ft) Length Double Edge Guide Track

N/A TDS0-5

N/A 0

N/A 5 ft

N/A
