UtiliTrak® PW Series Vee Channel On Bishop-Wisecarver Corp.

UtiliTrak® is an ideal choice for running two systems in parallel, where one slide uses DualVee® guide wheels and the other uses MadeWell® crowned rollers. Because precise parallelism is difficult to achieve, it is not uncommon for mounting surfaces to be slightly out of parallel. UtiliTrak®'s design compensates for mounting errors, and does not require absolute parallelism for accurate operation. The DualVee® guide wheel plate assembly and vee channel serves as the motion side, while the MadeWell® crowned roller and open channel side allows for parallel misalignment.

PW Series includes polymer guide wheels running on an anodized aluminum linear track channel designed to provide a more economical choice for lighter duty applications where highly smooth operation is not as critical.

Polymer Wheel Series UtiliTrak® is a lightweight solution for light to medium duty transport applications, and offers the lowest installed cost in its class, corrosion resistance, low noise, and wear resistance.

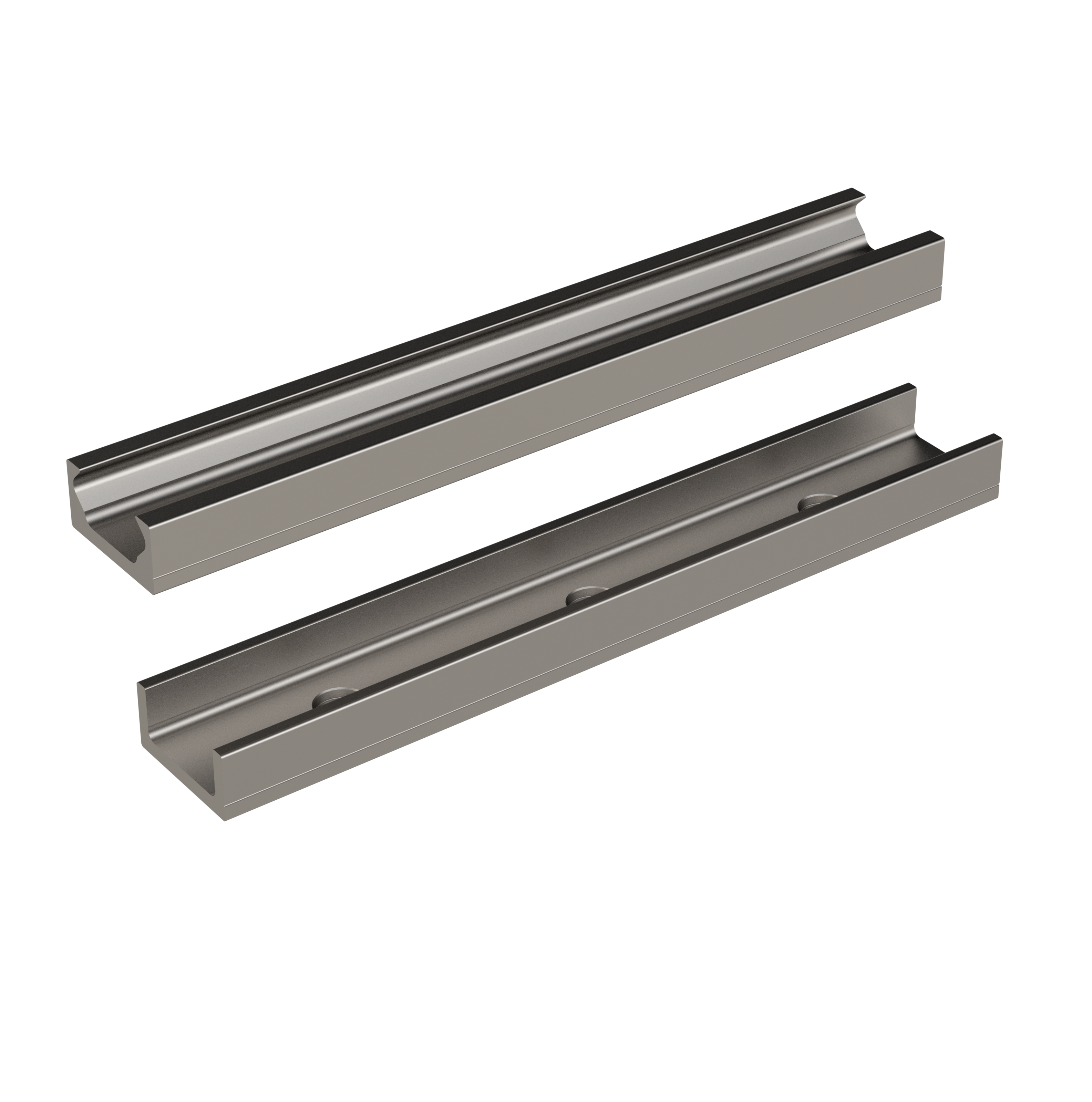

C channel is used as a parallel guide to Vee channel, with added misalignment tolerance.
Use PW 90 degree vee wheel plates in Vee channel
Linear track channel is anodized 6063-T6 aluminum alloy

Item #	Item Name	Brands	Model	Size	Length
2038	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 160 Millimeter (mm) Length, 2 Holes	N/A UtiliTrak®	N/A UTTA0-160	N/A 0	N/A 160 mm
2039	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 240 Millimeter (mm) Length, 3 Holes	N/A UtiliTrak®	N/A UTTA0-240	N/A 0	N/A 240 mm
2040	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 320 Millimeter (mm) Length, 4 Holes	N/A UtiliTrak®	N/A UTTA0-320	N/A 0	N/A 320 mm
2041	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 400 Millimeter (mm) Length, 5 Holes	N/A UtiliTrak®	N/A UTTA0-400	N/A 0	N/A 400 mm
2042	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 480 Millimeter (mm) Length, 6 Holes	N/A UtiliTrak®	N/A UTTA0-480	N/A 0	N/A 480 mm
2043	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 560 Millimeter (mm) Length, 7 Holes	N/A UtiliTrak®	N/A UTTA0-560	N/A 0	N/A 560 mm
2044	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 640 Millimeter (mm) Length, 8 Holes	N/A UtiliTrak®	N/A UTTA0-640	N/A 0	N/A 640 mm
2045	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 720 Millimeter (mm) Length, 9 Holes	N/A UtiliTrak®	N/A UTTA0-720	N/A 0	N/A 720 mm
2046	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 800 Millimeter (mm) Length, 10 Holes	N/A UtiliTrak®	N/A UTTA0-800	N/A 0	N/A 800 mm
2047	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 880 Millimeter (mm) Length, 11 Holes	N/A UtiliTrak®	N/A UTTA0-880	N/A 0	N/A 880 mm
2048	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 960 Millimeter (mm) Length, 12 Holes	N/A UtiliTrak®	N/A UTTA0-960	N/A 0	N/A 960 mm
2049	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1040 Millimeter (mm) Length, 13 Holes	N/A UtiliTrak®	N/A UTTA0-1040	N/A 0	N/A 1040 mm
2050	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1120 Millimeter (mm) Length, 14 Holes	N/A UtiliTrak®	N/A UTTA0-1120	N/A 0	N/A 1120 mm
2051	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1200 Millimeter (mm) Length, 15 Holes	N/A UtiliTrak®	N/A UTTA0-1200	N/A 0	N/A 1200 mm
2052	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1280 Millimeter (mm) Length, 16 Holes	N/A UtiliTrak®	N/A UTTA0-1280	N/A 0	N/A 1280 mm
2053	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1360 Millimeter (mm) Length, 17 Holes	N/A UtiliTrak®	N/A UTTA0-1360	N/A 0	N/A 1360 mm
2054	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1440 Millimeter (mm) Length, 18 Holes	N/A UtiliTrak®	N/A UTTA0-1440	N/A 0	N/A 1440 mm
2055	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1520 Millimeter (mm) Length, 19 Holes	N/A UtiliTrak®	N/A UTTA0-1520	N/A 0	N/A 1520 mm
2056	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1600 Millimeter (mm) Length, 20 Holes	N/A UtiliTrak®	N/A UTTA0-1600	N/A 0	N/A 1600 mm
2057	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1680 Millimeter (mm) Length, 21 Holes	N/A UtiliTrak®	N/A UTTA0-1680	N/A 0	N/A 1680 mm
2058	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1760 Millimeter (mm) Length, 22 Holes	N/A UtiliTrak®	N/A UTTA0-1760	N/A 0	N/A 1760 mm
2059	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1840 Millimeter (mm) Length, 23 Holes	N/A UtiliTrak®	N/A UTTA0-1840	N/A 0	N/A 1840 mm
2060	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 1920 Millimeter (mm) Length, 24 Holes	N/A UtiliTrak®	N/A UTTA0-1920	N/A 0	N/A 1920 mm
2061	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 2000 Millimeter (mm) Length, 25 Holes	N/A UtiliTrak®	N/A UTTA0-2000	N/A 0	N/A 2000 mm
2062	N/A UtiliTrak® PW Series Channel, Size 0, Vee Profile, Aluminum, 2080 Millimeter (mm) Length, 26 Holes	N/A UtiliTrak®	N/A UTTA0-2080	N/A 0	N/A 2080 mm
