UtiliTrak® is an ideal choice for running two systems in parallel, where one slide uses DualVee® guide wheels and the other uses MadeWell® crowned rollers. Because precise parallelism is difficult to achieve, it is not uncommon for mounting surfaces to be slightly out of parallel. UtiliTrak®'s design compensates for mounting errors, and does not require absolute parallelism for accurate operation. The DualVee® guide wheel plate assembly and vee channel serves as the motion side, while the MadeWell® crowned roller and open channel side allows for parallel misalignment.
PW Series includes polymer guide wheels running on an anodized aluminum linear track channel designed to provide a more economical choice for lighter duty applications where highly smooth operation is not as critical.

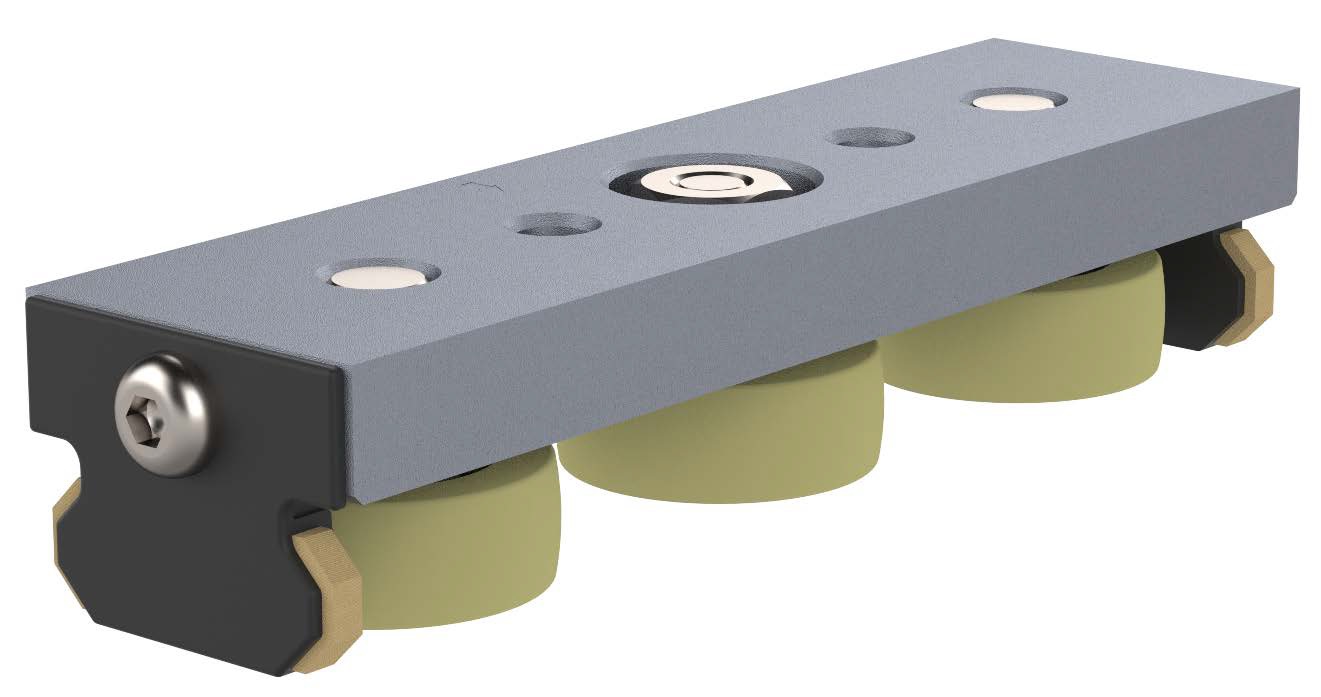

Polymer Wheel Series UtiliTrak® is a lightweight solution for light to medium duty transport applications, and offers the lowest installed cost in its class, corrosion resistance, low noise, and wear resistance.
Wheels feature chemically resistant high temp polymer overmolded on a stainless steel bearing.
- Built-in wiper caps at each end of the wheel plate clear debris from the track
- Loads to 311N
- Speeds to 1.5 m/s
- Acceleration to 3 g's
- 3, 4 and 5-wheel plate assemblies available
- Available in sizes 0, 1, and 2
