UtiliTrak® CR Series Compact Linear Guides On Bishop-Wisecarver Corp.

UtiliTrak® CR Series is a corrosion-resistant and debris-resistant linear guide system with high load capacity.

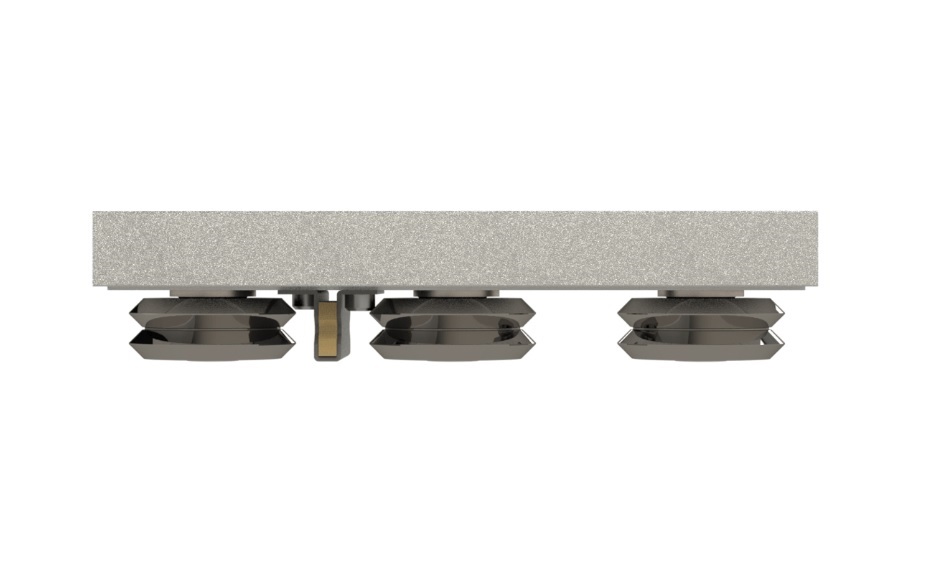

UT CR wheel plate assemblies feature three stainless steel DualVee® guide wheels that wipe debris from the track as the system runs. They provide smooth, low noise, low-friction motion. Wheels come sealed and lubricated for life. The wheel plate assembly can be adjusted to the track for optimal fit and readjusted to extend system life.

UT CR track is a stainless steel and aluminum composite channel that can be easily butt-joined for unlimited travel lengths.

Item #	Item Name	Model	Size	Length	Material
1648	N/A UtiliTrak® CR Series Size 1, 3-Wheel, and 90 Degree Vee Stainless Steel Wheel Plate Linear Guide	N/A UTCCA1-SS	N/A 1	N/A	N/A Stainless Steel
1649	N/A UtiliTrak® CR Series Size 2, 3-Wheel, and 90 Degree Vee Stainless Steel Wheel Plate Linear Guide	N/A UTCCA2-SS	N/A 2	N/A	N/A Stainless Steel
1650	N/A UtiliTrak® CR Series Size 3, 3-Wheel, and 90 Degree Vee Stainless Steel Wheel Plate Linear Guide	N/A UTCCA3-SS	N/A 3	N/A	N/A Stainless Steel
1651	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 190 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.190	N/A 1	N/A 190 mm	N/A Aluminum Stainless Steel
1652	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 290 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.290	N/A 1	N/A 290 mm	N/A Aluminum Stainless Steel
1653	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 390 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.390	N/A 1	N/A 390 mm	N/A Aluminum Stainless Steel
1654	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 490 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.490	N/A 1	N/A 490 mm	N/A Aluminum Stainless Steel
1655	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 590 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.590	N/A 1	N/A 590 mm	N/A Aluminum Stainless Steel
1656	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 690 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.690	N/A 1	N/A 690 mm	N/A Aluminum Stainless Steel
1657	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 790 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.790	N/A 1	N/A 790 mm	N/A Aluminum Stainless Steel
1658	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 890 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.890	N/A 1	N/A 890 mm	N/A Aluminum Stainless Steel
1659	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 990 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 0.990	N/A 1	N/A 990 mm	N/A Aluminum Stainless Steel
1660	N/A UtiliTrak® CR Series Size 1, Aluminum/Stainless Steel, and 1090 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP1SS 1.090	N/A 1	N/A 1090 mm	N/A Aluminum Stainless Steel
1661	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 240 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.240	N/A 2	N/A 240 mm	N/A Aluminum Stainless Steel
1662	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 390 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.390	N/A 2	N/A 390 mm	N/A Aluminum Stainless Steel
1663	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 540 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.540	N/A 2	N/A 540 mm	N/A Aluminum Stainless Steel
1664	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 690 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.690	N/A 2	N/A 690 mm	N/A Aluminum Stainless Steel
1665	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 840 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.840	N/A 2	N/A 840 mm	N/A Aluminum Stainless Steel
1666	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 990 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 0.990	N/A 2	N/A 990 mm	N/A Aluminum Stainless Steel
1667	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 1140 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 1.140	N/A 2	N/A 1140 mm	N/A Aluminum Stainless Steel
1668	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 1290 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 1.290	N/A 2	N/A 1290 mm	N/A Aluminum Stainless Steel
1669	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 1440 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 1.440	N/A 2	N/A 1440 mm	N/A Aluminum Stainless Steel
1670	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 1590 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 1.590	N/A 2	N/A 1590 mm	N/A Aluminum Stainless Steel
1671	N/A UtiliTrak® CR Series Size 2, Aluminum/Stainless Steel, and 2190 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP2SS 2.190	N/A 2	N/A 2190 mm	N/A Aluminum Stainless Steel
1672	N/A UtiliTrak® CR Series Size 3, Aluminum/Stainless Steel, and 415 Millimeter (mm) Length Track Linear Guide	N/A UTCOMP3SS 0.415	N/A 3	N/A 415 mm	N/A Aluminum Stainless Steel
