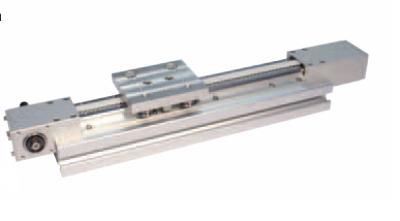

Belt Driven LoPro Linear Actuators
All Categories
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
Close Window
Complete belt actuated system, ready for installation
Long stroke, high speed and acceleration capability
AT style reinforced polyurethane belting
Linear accuracy of 0.008 in/ft (0.2 mm/300 mm)
Repeatable within 0.004 in (0.1 mm)
Small and large drive options available on size 2
Aluminum support beams, steel beams or un-mounted (without beams)
Basic wheel plate or wiper wheel plate
Optional NEMA and IEC motor mounts
Standard and corrosion resistant versions available
Aluminum alloy drive end pulleys with aluminum or plated steel flanges
1 - 5 of 5
|
Results Per Page
25
50
100
200
|
View
|
Unit of Measure
Imperial
Metric
Both
1
Request Information
Compare Items
Item #
Item Name
Axial Load Capacity (L
A
)
Radial Load Capacity (L
R
)
Pitch Moment Capacity (M
P
)
Yaw Moment Capacity (M
Y
)
Roll Moment Capacity (M
R
)
item-1005
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
N/A
Belt Driven LoPro Linear Actuator
Axial Load Capacity (L
A
)
N/A
988 N
222 lb
Radial Load Capacity (L
R
)
N/A
2391 N
538 lb
Pitch Moment Capacity (M
P
)
N/A
26 N·m
18.9 ft·lbf
Yaw Moment Capacity (M
Y
)
N/A
62 N·m
45.7 ft·lbf
Roll Moment Capacity (M
R
)
N/A
27 N·m
19.8 ft·lbf
item-1006
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
N/A
Belt Driven LoPro Linear Actuator
Axial Load Capacity (L
A
)
N/A
2450 N
551 lb
Radial Load Capacity (L
R
)
N/A
5194 N
1168 lb
Pitch Moment Capacity (M
P
)
N/A
95 N·m
70.3 ft·lbf
Yaw Moment Capacity (M
Y
)
N/A
202 N·m
148.9 ft·lbf
Roll Moment Capacity (M
R
)
N/A
100 N·m
73.8 ft·lbf
item-1007
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
N/A
Belt Driven LoPro Linear Actuator
Axial Load Capacity (L
A
)
N/A
2450 N
551 lb
Radial Load Capacity (L
R
)
N/A
5194 N
1168 lb
Pitch Moment Capacity (M
P
)
N/A
95 N·m
70.3 ft·lbf
Yaw Moment Capacity (M
Y
)
N/A
202 N·m
148.9 ft·lbf
Roll Moment Capacity (M
R
)
N/A
100 N·m
73.8 ft·lbf
item-1008
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
N/A
Belt Driven LoPro Linear Actuator
Axial Load Capacity (L
A
)
N/A
6668 N
1499 lb
Radial Load Capacity (L
R
)
N/A
11564 N
2600 lb
Pitch Moment Capacity (M
P
)
N/A
346 N·m
254.9 ft·lbf
Yaw Moment Capacity (M
Y
)
N/A
599 N·m
442.1 ft·lbf
Roll Moment Capacity (M
R
)
N/A
372 N·m
274.1 ft·lbf
item-1009
/Asset/Belt-Driven-LoPro-Linear-Actuators.JPG
N/A
Belt Driven LoPro Linear Actuator
Axial Load Capacity (L
A
)
N/A
15684 N
3526 lb
Radial Load Capacity (L
R
)
N/A
19012 N
4274 lb
Pitch Moment Capacity (M
P
)
N/A
1220 N·m
899.5 ft·lbf
Yaw Moment Capacity (M
Y
)
N/A
1478 N·m
1090.3 ft·lbf
Roll Moment Capacity (M
R
)
N/A
1174 N·m
865.6 ft·lbf
